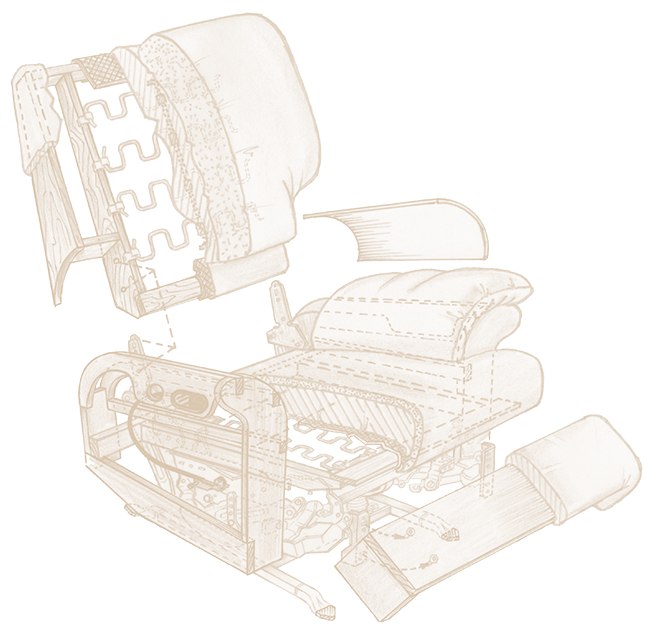

Components

Hover over the number to highlight the component on the recliner.
Finger Release Latch
Optional Power Button Mount Area
Mechanism Seat Plate Mount Area
Mechanism Trigger Release Activator
Floor Base for Mechanism
Front Mechanism Brace Mount for Foot Ottoman Rest Board
Back Mechanism Bracket Mounts for Back Frame Attachment
T-Nut Placement to Align Ottoman Board to the Mechanism
Coil and Rocker Cam Area
Seat Spring and Hartco Spring Clips
Back Spring and Hartco Spring Clips
Seat Insulated Tie Wire and Hog Ring (Stationizes Spring Unity)(2)
Back Insulated Tie Wire & Hog Ring (Stationizes Spring Unity) (1)
Heavy Duty Hardwood Seat Box Assembly
Front Arm Post
Back Arm Post
Inside Back Frame Post (Attaches to #7 Mechanism Bracket)
Back Wing Plate
Top Back Rail
Cardboard Insulator (Wraps Over Inside Top & Side Arm Frame)
Front Ottoman Foot Rest Board
Thick Poly Foam Ottoman Padding
Uphosterly Cover Over Ottoman
Seat Foam Core
Poly-Dacron Wrap Over Seat Foam
Seat Cover
Front Arm Upholstery Cover
Top Arm Upholstered Pillow Pad
Seat Spring "Shoddy Pad" (Insulation Between Seat Foam & Spring)
Lower Back Fiber Padding
Back Upholstery Cover
Back Filling With Poly-Dacron Fiber
Inner Back Upholstery Cover Between Spring & Upholstery
Top Back Rail Cover
Upper Back Rail Fiber Padding
Poly Foam Wrap Around Side Back Wing
Design2Recline's furniture is built to last with high-quality components and construction techniques designed to withstand years of use. Discover what's underneath it all by exploring the menu items.
